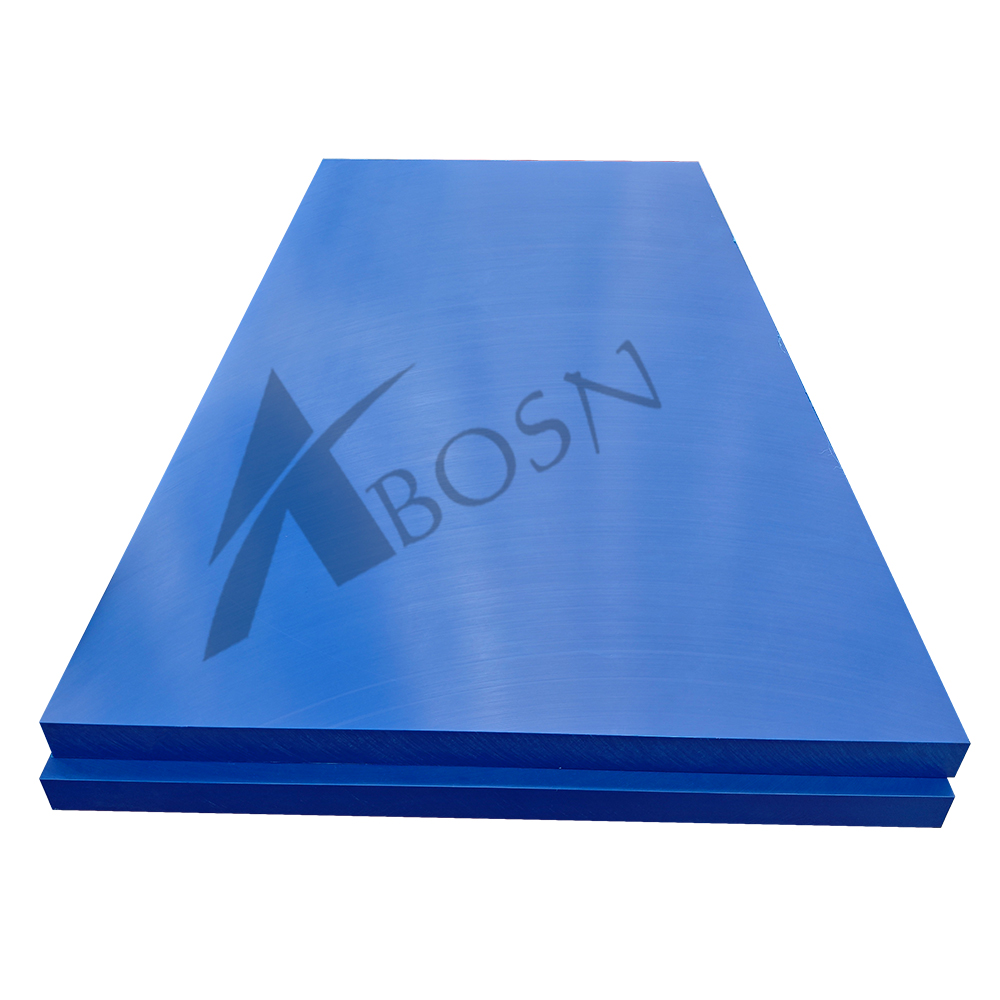

Colorful Ultra-High Molecular Weight Polyethylene (UHMWPE) Sheet
UHMWPE sheet typically refers to products with a molecular weight greater than 3 million, which gives it a range of unique and superior properties. These sheets are an ideal choice for applications requiring exceptional durability, chemical resistance, and low friction, even in harsh environments.
UHMWPE sheets possess an outstanding combination of performance characteristics:
Property | Description |
|---|---|
High Abrasion Resistance | UHMWPE's wear resistance is among the highest of all plastics, outperforming many metals including carbon steel in some forms. |
High Impact Resistance | It boasts excellent impact strength, even at low temperatures, making it far tougher than many other engineering plastics. |
Self-Lubrication & Low Friction | The material has a very low coefficient of friction (0.05-0.11), which is comparable to PTFE (Teflon) and reduces the need for external lubrication. |
Chemical & Corrosion Resistance | It is highly resistant to a wide range of corrosive chemicals, acids, and alkalis, with the exception of strong oxidizing acids. |
Non-Toxic & Food Safe | UHMWPE is odorless, tasteless, and non-toxic, making it suitable for applications in the food and pharmaceutical industries. |
Low Water Absorption | It has an extremely low moisture absorption rate (typically <0.01%), ensuring dimensional stability and preventing the growth of mold or bacteria. |
Wide Temperature Range | The material retains its properties across a broad temperature range, from -200°C to 80°C, and maintains excellent impact strength even in cryogenic conditions. |
Lightweight | With a density of 0.93-0.98 g/cm³, it is lighter than water and significantly lighter than steel, making it easy to handle and install. |

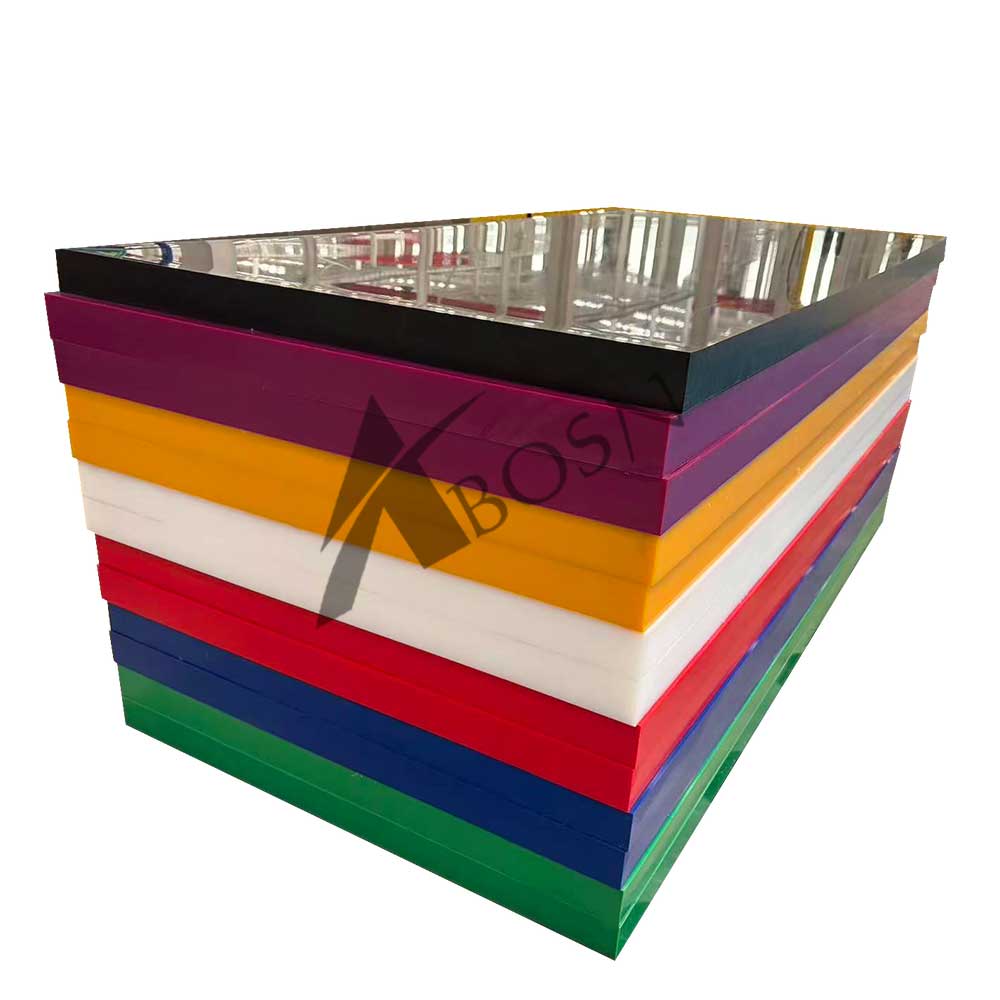

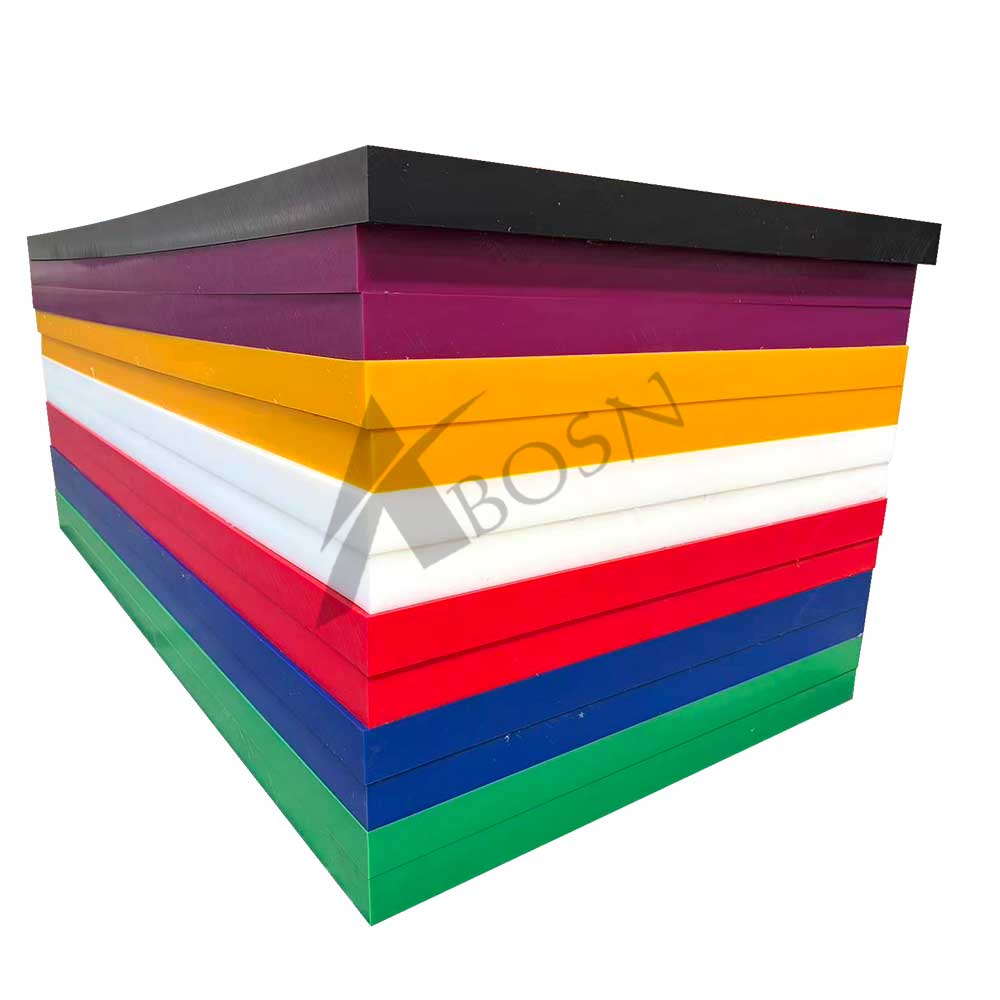

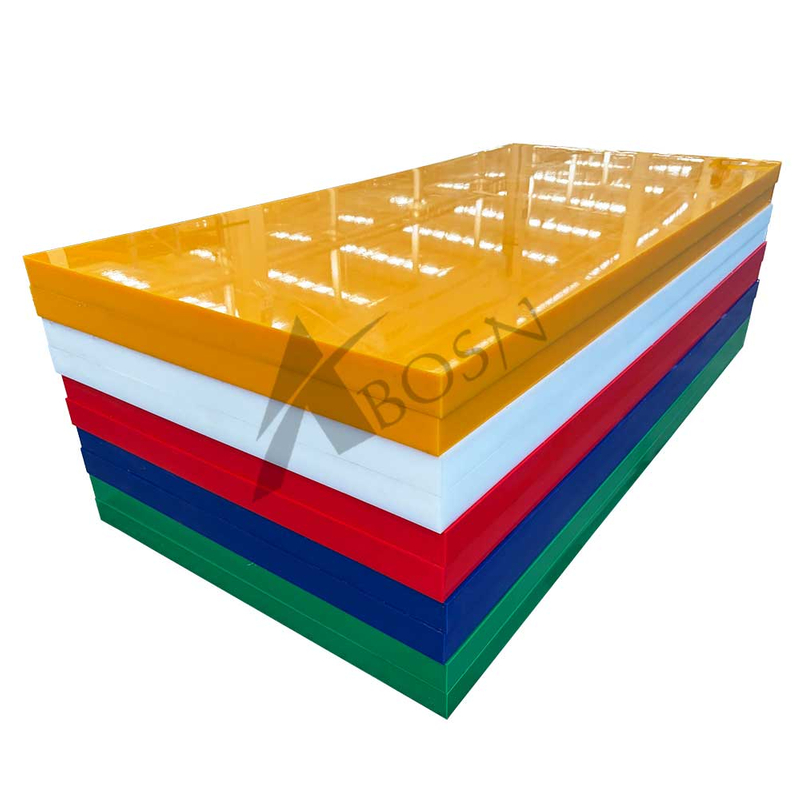

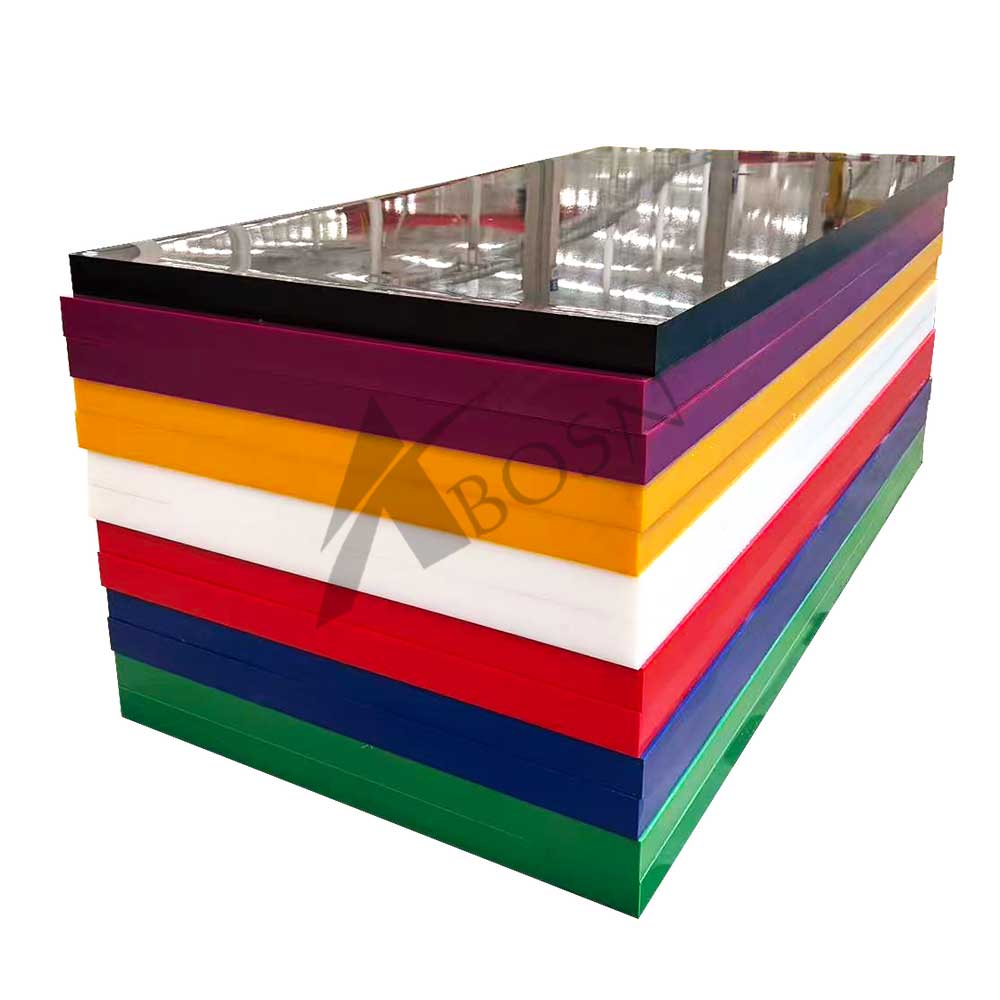

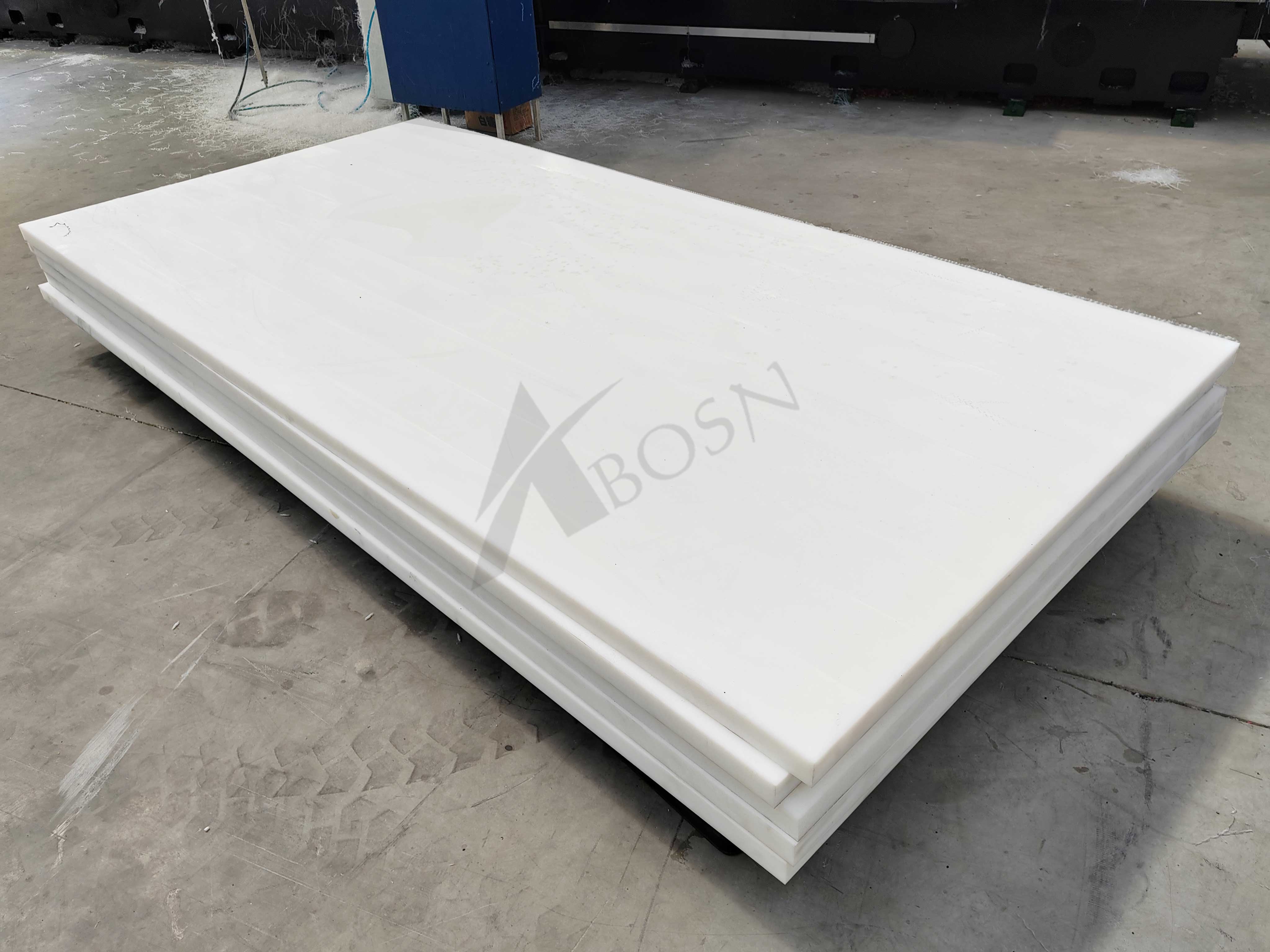

The primary color of UHMWPE is natural white. However, through the addition of color additives during manufacturing, the sheets can be produced in a wide variety of colors, including:
Black, Green, Red, Yellow, Blue, Grey, Orange, Silver White, Pink, Dark Blue, Sky Blue, and Purple.
Custom colors can also be matched by providing a color number or sample.
Available Colors: Natural (white), Black, and a full range of custom colors.
Thickness: Typically ranges from 1 mm to 300 mm, with 200mm being a common maximum for certain manufacturers.
Common Sheet Sizes:
1000 mm x 2000 mm
1220 mm x 2440 mm (4' x 8')
1250 mm x 3000 mm
1500 mm x 3000 mm
1220 mm x 3050 mm
Customization: Sheets can be customized to specific dimensions and colors to meet client requirements.
The unique combination of properties makes colorful UHMWPE sheets versatile for a wide range of industries:
Industrial & Mechanical Engineering: Chute liners, hopper liners, conveyor components (star wheels, idler sprockets), wear strips, and slide plates.
Material Handling & Mining: Linings for bunkers, silos, trucks, and hoppers to prevent material adhesion and improve flow.
Food Processing: Cutting boards, conveyor guides, and machinery components due to its non-toxic and FDA-compliant properties.
Marine & Shipping: Fender pads, ship lining boards, and dock components for their impact and corrosion resistance.
Architecture & Agriculture: Wear-resistant lining in agricultural and construction machinery.
Sports & Recreation: Playground equipment and skating rink linings.
Colorful UHMWPE sheets offer a superior solution for demanding applications where wear, impact, and corrosion resistance are critical. With the added benefit of customizable colors and dimensions, they provide both high performance and aesthetic flexibility.
