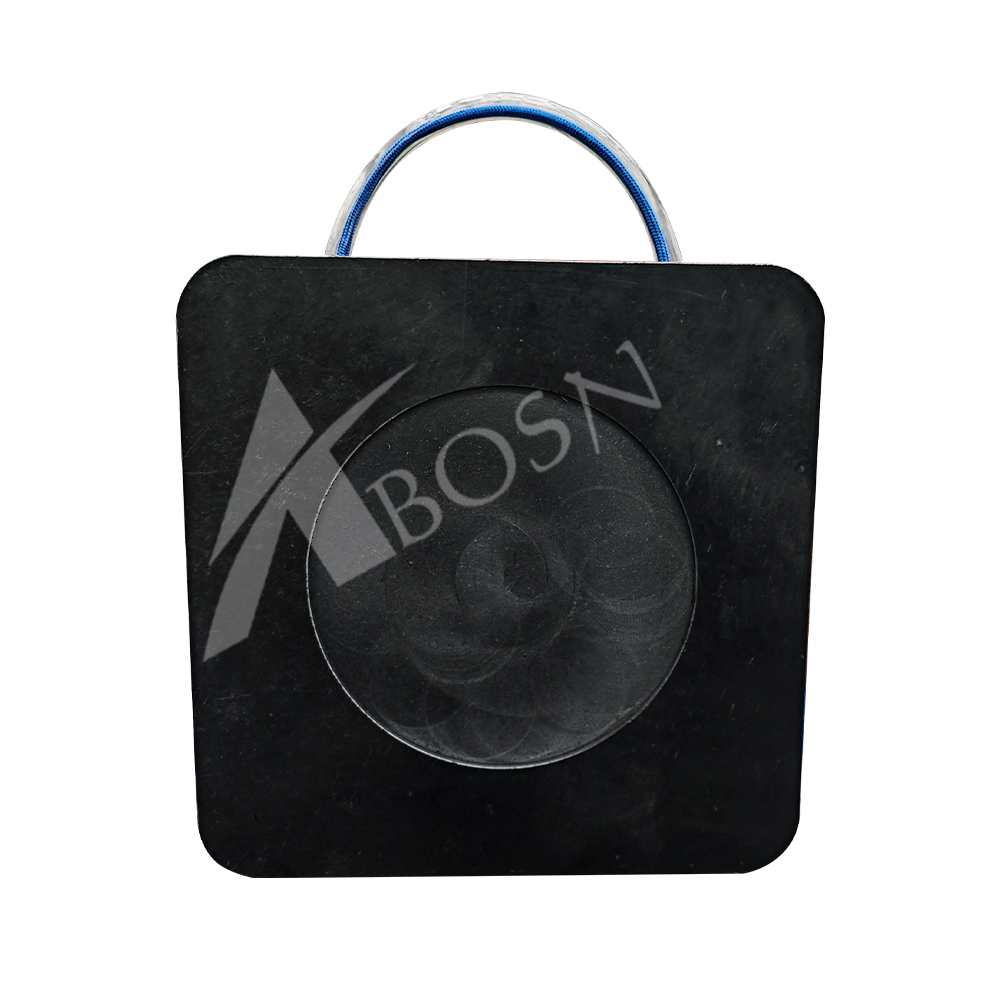

Prevent crane tip-overs and pavement damage with our heavy-duty outrigger pad. Designed for mobile cranes, concrete pumps, and aerial work platforms, this pad distributes point loads evenly across soft ground, asphalt, or uneven surfaces. Made from impact-resistant HDPE or composite material – non-conductive, UV-stabilized, and easy to clean.
The Crane Outrigger Pad (also known as a crane float pad, outrigger mat, or cribbing pad) is an essential safety accessory for any mobile lifting operation. Placed beneath crane outrigger floats or stabilizer feet, it significantly increases the surface area contacting the ground, reducing ground pressure and preventing the outrigger from sinking into soil, mud, gravel, or hot asphalt.
Manufactured from high-density polyethylene (HDPE) or engineered composite, this pad is lighter than steel or timber, immune to rot, and chemically resistant to hydraulic fluids, diesel, and grease.
Safety First: Reduces risk of crane instability or tip-over due to ground failure.
Surface Protection: Prevents cracking of concrete, rutting of lawns, and damage to paved lots.
Legal Compliance: Many job sites and municipalities require outrigger pads per OSHA / local safety codes.
Versatility: Works under outriggers, stabilizers, track excavators, jacks, and heavy machinery legs.
Feature | Benefit |
|---|---|
High load capacity | Up to 80,000 lbs (36 tonnes) per pad depending on model |
Large surface area | Typical pad size: 24"x24", 30"x30", or 36"x36" (610x610mm to 915x915mm) |
Non-conductive material | Safe near power lines and electrical work – HDPE is an electrical insulator |

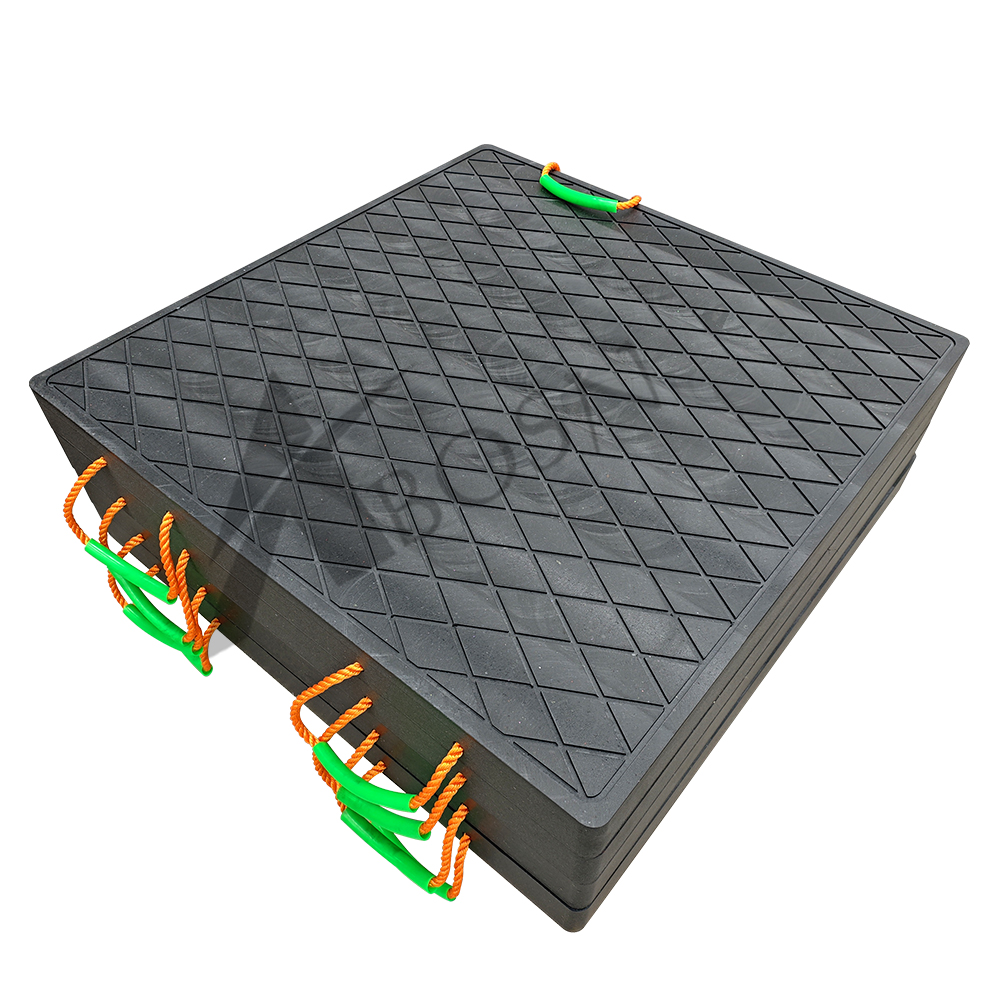

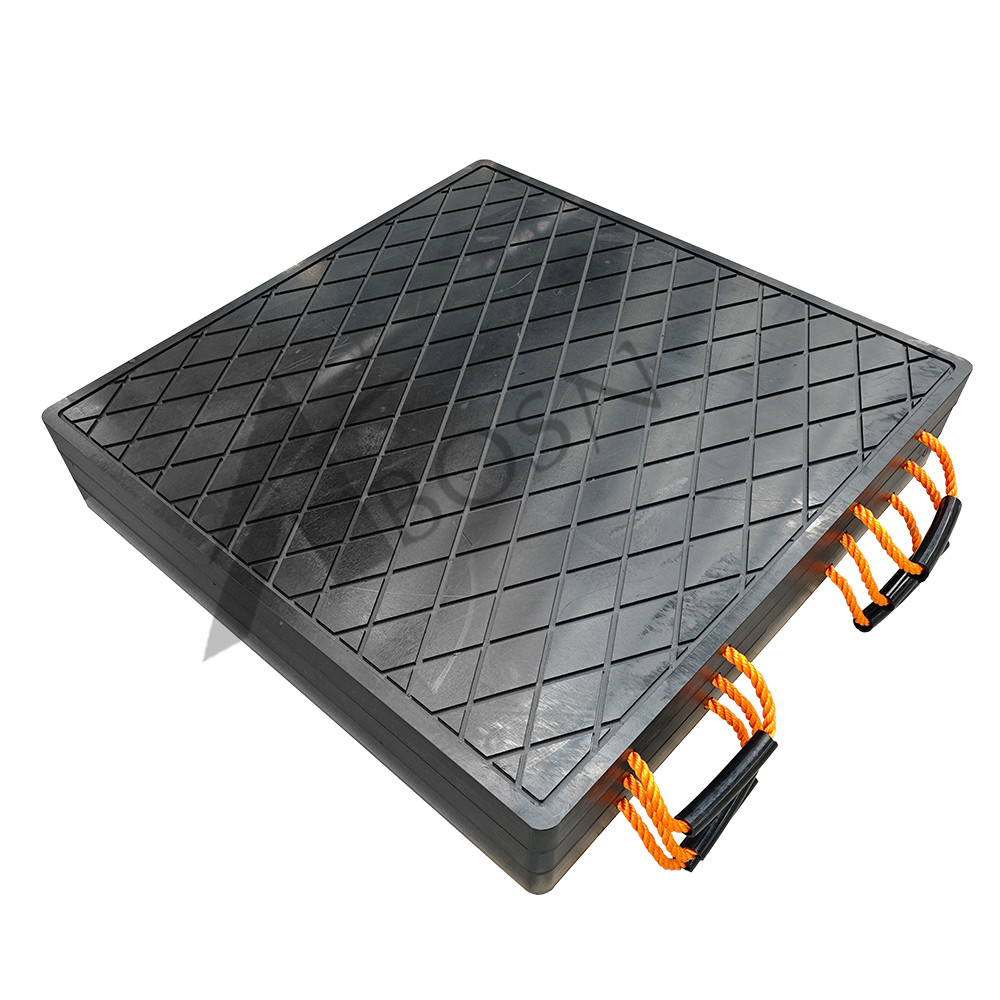

Anti-slip texture | Diamond or chevron pattern prevents pad shifting under load |

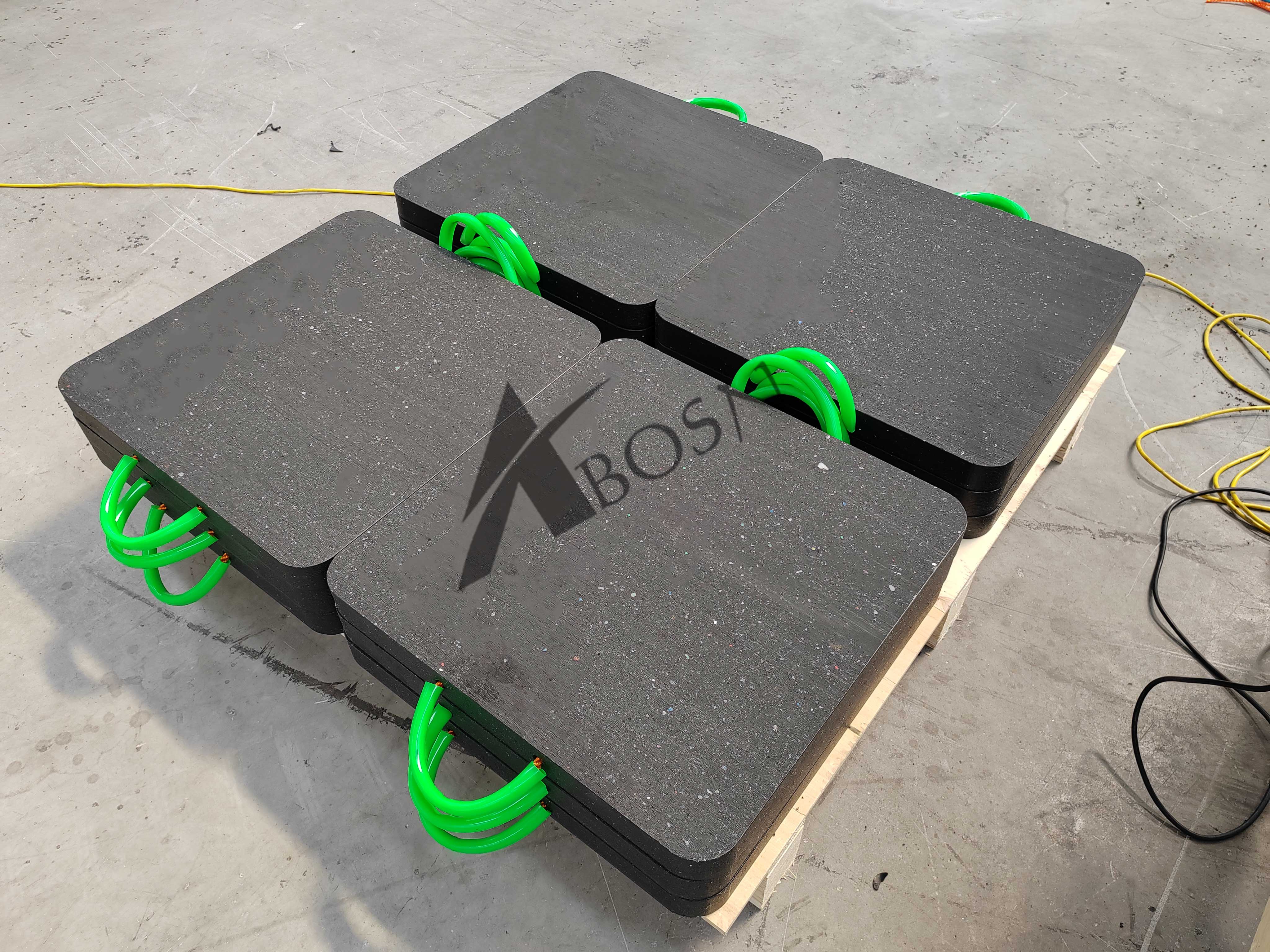

Integrated handles | Two or four recessed grip points for easy positioning |
Weather & chemical resistant | Withstands sun, rain, snow, oil, fuel, and salt |

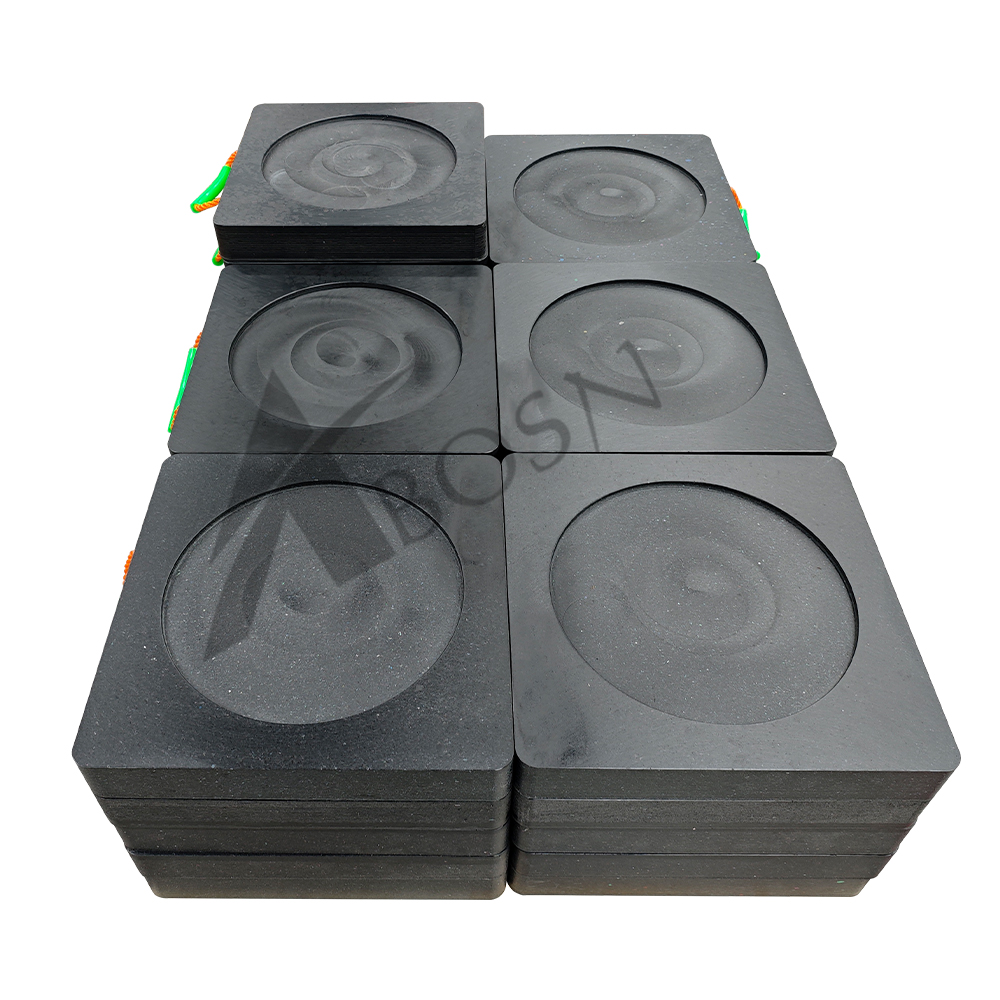

Stackable design | Multiple pads can be stacked to increase height on uneven terrain |
Parameter | Standard Value |
|---|---|
Material | HDPE (virgin or recycled) / composite |
Dimensions (L x W) | 24" x 24" (610 x 610 mm) |
30" x 30" (760 x 760 mm) | |
36" x 36" (915 x 915 mm) | |
Thickness | 1" – 13.8" (25 – 350 mm) |
Weight | / |
Ground pressure reduction | Up to 75% vs. bare outrigger float |
Color | Yellow, black, orange, green |
Temperature range | -94°F to +180°F (-70°C to +82°C) |
To select the correct pad size, use this simple formula:
Required pad area = Crane outrigger load (lbs) ÷ Allowable ground bearing pressure (psf)
Example: A 60,000 lb outrigger load on soft soil (2,500 psf capacity) requires at least 24 sq ft of pad area – easily achieved with two 36"x36" pads stacked or side-by-side.
✅ Mobile cranes (truck-mounted, rough terrain, all-terrain)
✅ Concrete pump trucks
✅ Aerial bucket trucks & man lifts
✅ Crawler cranes (as supplemental cribbing)
✅ Heavy equipment jacks & stabilizers
✅ Utility & line construction vehicles
Material | Best For | Pros | Cons |
|---|---|---|---|
HDPE | General crane work | Lightweight, chemical resistant, affordable | Can creep under extreme sustained loads |
Composite (fiberglass reinforced) | Heavy lifts & soft soil | Very high stiffness, lower ground pressure | Heavier, higher cost |
Aluminum | High-cycle rental fleets | Extremely strong, never cracks | Conductive (not for electrical work), expensive |
Plywood / Laminated wood | Budget temporary use | Cheap, widely available | Short lifespan, absorbs water, splinters |
⚠️ Always follow OSHA/ASME B30.5 guidelines.
Never exceed the pad's rated load capacity.
Use on stable, level ground whenever possible.
On soft or uneven soil, use larger pads or multiple pads stacked in a pyramid pattern.
Inspect pads before each use for cracking, warping, or surface damage.
Never use damaged pads.
Clean with water and mild detergent; no special solvents needed.
Store flat out of direct UV when not in use for maximum lifespan (though HDPE is UV-stabilized).
Inspect handles and edges for impact damage after heavy drops.
Do not expose to open flame or temperatures above 180°F (82°C).
1 x Crane outrigger pad (quantity per crane: typically 4 required)
(Optional) Carrying strap
(Optional) Stacking pins for multiple pads
In-stock ready to ship – Standard sizes shipped within 24 hours
Custom sizes available – We can manufacture up to 48" x 48"
Bulk & fleet pricing – Discounts for 10+ units
Engineered certification – Load test reports available upon request
Made in compliance – Meets or exceeds industry safety standards
Size | Thickness | Weight | Load Capacity (max) | Price (USD) |
|---|---|---|---|---|
24"x24" | 1.5" | 25 lbs | 40,000 lbs | Contact for quote |
30"x30" | 2.0" | 45 lbs | 60,000 lbs | Contact for quote |
36"x36" | 2.5" | 75 lbs | 80,000 lbs | Contact for quote |
Custom sizes, colors, and logo embossing available for large orders. Request a quote today.
✅ Distributes heavy crane loads – Reduces ground pressure, prevents sinking & surface damage
✅ Made of durable HDPE – Impact-resistant, UV-stabilized, non-conductive, chemical-proof
✅ Integrated carry handles – One-person portable, no forklift needed
✅ Anti-slip surface pattern – Grips outrigger floats and ground evenly
✅ Weather tough – Works from -40°F to +180°F, won't rot, crack, or absorb water
✅ OSHA / ASME compliant – Safe for construction, utility, and crane rental applications
